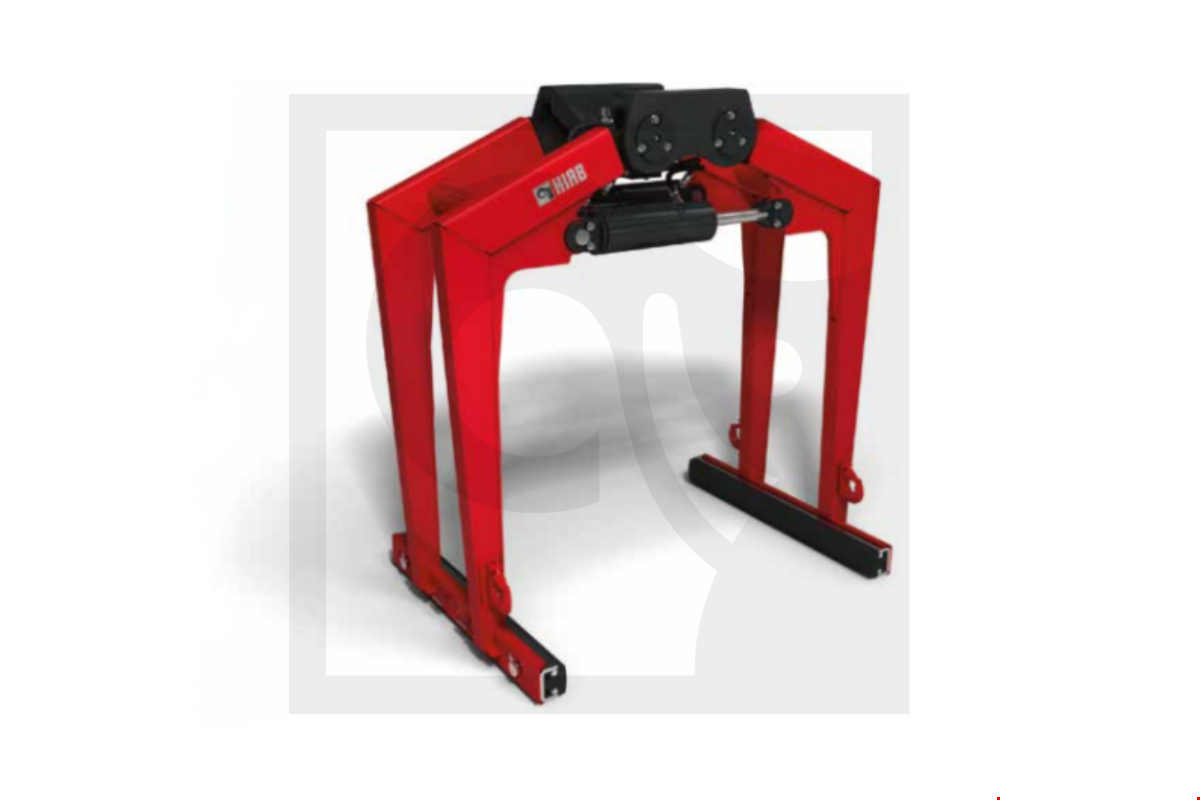

BRICK STACK GRAPPLE KM 331 - 1200

Material number: 9854487
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab accessories are designed to help you to perform your daily job faster and easier.

Additional information

Please note that this part is stored in an off-site warehouse and requires special handling. Same-day shipping is available for express orders placed before 1 PM CET.

Attributes

Height (mm): 1,655
Item Attachment Dimension: o 4 x 140 MM
Max Load (kg): 1,800
Opening Max: 100 - 1475
Plunge Depth: 1,200
Weight (kg): 265
Width (mm): 500

Downloads

KM 331 ME_MD_1.pdf

Model specifications

Brick grabs
Item Part No
Height (mm)
Item Attachment Dimension
Max Load (kg)
Opening Max
Plunge Depth
Weight (kg)
Width (mm)
Detail

Brick grabs	KM331-1000	KM331 - 1100	KM331 - 1200	KM331 - 1300
Item Part No	9854461	9854479	9854487	9854495
Height (mm)	1,455	1,555	1,655	1,755
Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM
Max Load (kg)	2,000	2,000	1,800	1,600
Opening Max	220 - 1420	160 - 1450	100 - 1475	40 - 1500
Plunge Depth	1,000	1,100	1,200	1,300
Weight (kg)	255	260	265	270
Width (mm)	500	500	500	500
Detail	Variant detail	Variant detail	Current variant	Variant detail

BRICK STACK GRAPPLE KM 331 - 1200

Skip to

Description

Additional information

Attributes

Downloads

Model specifications

Brick grabs

Buy as package

	KM 331 - 1200 WF
Item Part No	3385841
Height (mm)	1,915
Item Attachment Dimension	o 4 x 140 MM
Max Load (kg)	1,800
Opening Max	100-1475
Plunge Depth	1,200
Weight (kg)	335
Width (mm)	500
Detail	Variant detail
