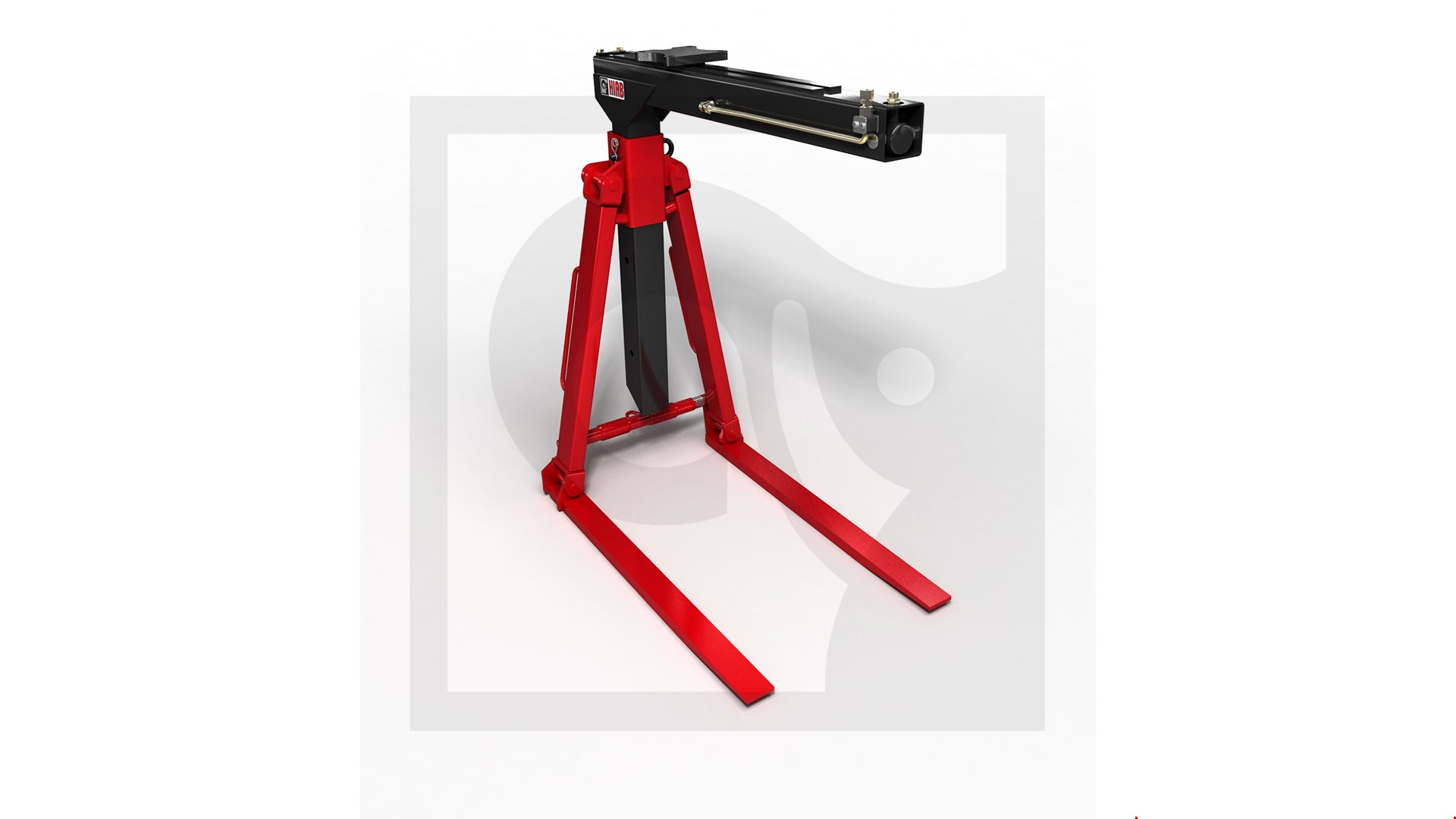

PALLET FORK KM 401H-2000-600 FS

Material number: 3382630
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab accessories are designed to help you to perform your daily job faster and easier.

Attributes

Gravity Center: 600
Item Attachment Type: shaft
Max Load (kg): 2,000
Tine Dimension: 100x50
Tine Length: 1,150
Tine Spread (mm): 500-840
Weight (kg): 230

Downloads

KM 401H ME_MD_1.pdf

Model specifications

Pallet forks	KM 401H - 2000-500	KM 401H - 2000-600
Item Part No	9854410	9855726
Max Load (kg)	2,000	2,000
Tine Dimension	100x35	100x50
Tine Length	980	1,150
Tine Spread (mm)	495-835	500-840
Weight (kg)	135	170
Detail	Variant detail	Variant detail

Buy as package

	KM 401H - 2000-500 B FS	KM 401H - 2000-500 B WS	KM 401H - 2000-500 C FF	KM 401H - 2000-500 C WF	KM 401H - 2000-600 B FS	KM 401H - 2000-600 B WS	KM 401H - 2000-600 C FF	KM 401H - 2000-600 C WF
Item Part No	3382621	3385761	3383865	3385728	3382630	3385779	3383873	3385736
Gravity Center	500	500	500	500	600	600	600	600
Item Attachment Type	shaft		flange		shaft		flange
Max Load (kg)	2,000	2,000	2,000	2,000	2,000	2,000	2,000	2,000
Tine Dimension	100x35	100x35	100x35	100x35	100x50	100x50	100x50	100x50
Tine Length	980	980	980	980	1,150	1,150	1,150	1,150
Tine Spread (mm)	495-835	495-835	495-835	495-835	500-840	500-840	500-840	500-840
Weight (kg)	175	175	175	175	230	230	230	230
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail
